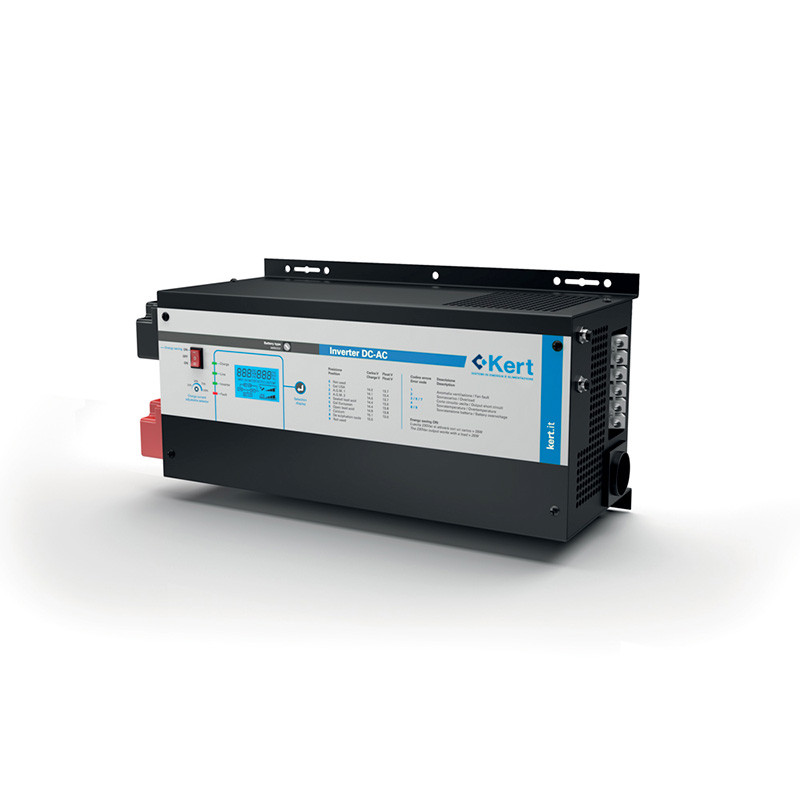

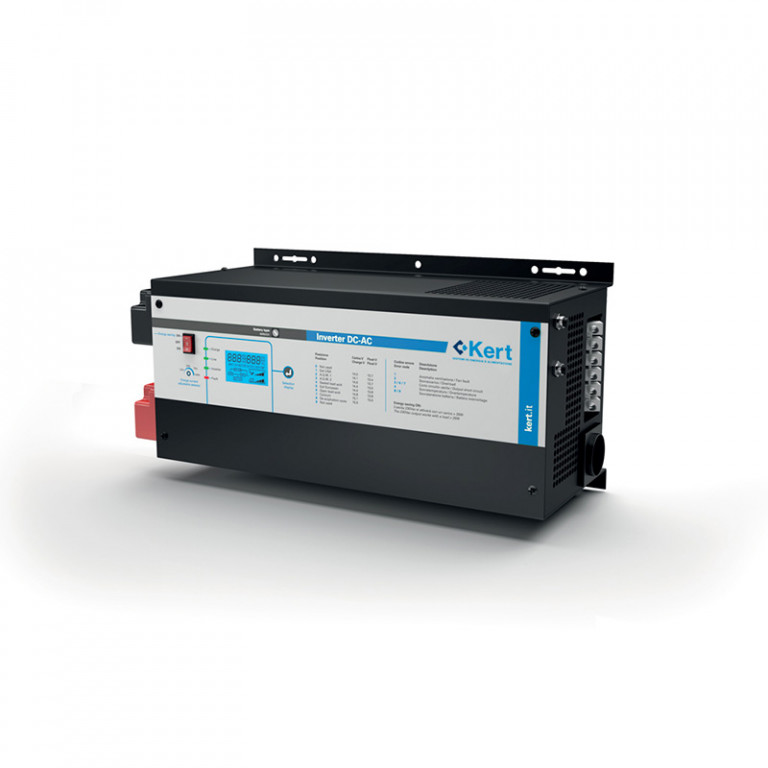

Inverter DC-AC


Part number: KSTA3000S-24

Inverter dc-ac In 24Vdc 3000W pure sine wave with integrated charger

Application fields

Bus / Vehicles

Data sheet

Inverter dc-ac In 24Vdc 3000W pure sine wave with integrated charger

Installation Tower, Wall mount
Wave form Pure sine wave
Power (W) 3000
Surge rating (W/s) 4200 / 5
Input Voltage DC 24 Vdc
Current consumption from the battery with the maximum output power (A) 188A
Output voltage 230 Vac
Output frequency (Hz) 50
Absorption from the battery empty (A) -
Harmonic distorsion (%THD) -
Efficiency (%) >95
Soft start Yes
Power save mode with load ≤25W : inverter OFF (setting on "power saver")
Input voltage (Vac) 230 Vac
Input frequency (Hz) 50
By-pass yes
Integrated charger Yes
Maximum bypass mains current admitted (A)
Transfer time (ms) 10
Max power consumption from the mains (no load) with max charge current 1410
Nominal charging current (A) 45
Working temperature (°C) -10 +40
Cooling Automatic forced cooling
IP rating IP20
Audible noise at 1m (dBA) <62
Available contact -
Signalling -
Protections Short circuit
Connection Screw, Plug-in
Standard provided equipment Battery cables
Standards EN 61000-3-2, EN 61000-3-3, EN 62040-1, EN 62040-2, Directive (ECE) R10-05
"E" Mark Yes
Warranty 2 Year
Package quantity (pieces) 1
Height (mm) 181
Width (mm) 223
Depth (mm) 445
Weight (Kg) 24
